Yoshino Ceiling System
Yoshino Metal System Ceiling 35 and 45 provides a safe and convenient ceiling solution for your home. It is specially designed and tested according to JIS A6517, using a galvalume-coated metal furring frame. Yoshino Ceiling Systems are available with customized options to meet specific performance requirements, including moisture resistance, fire resistance, and sound insulation. Yoshino Ceiling Systems are available in customized options to meet specific performance requirements, this includes moisture resistance, fire resistance, and sound insulation

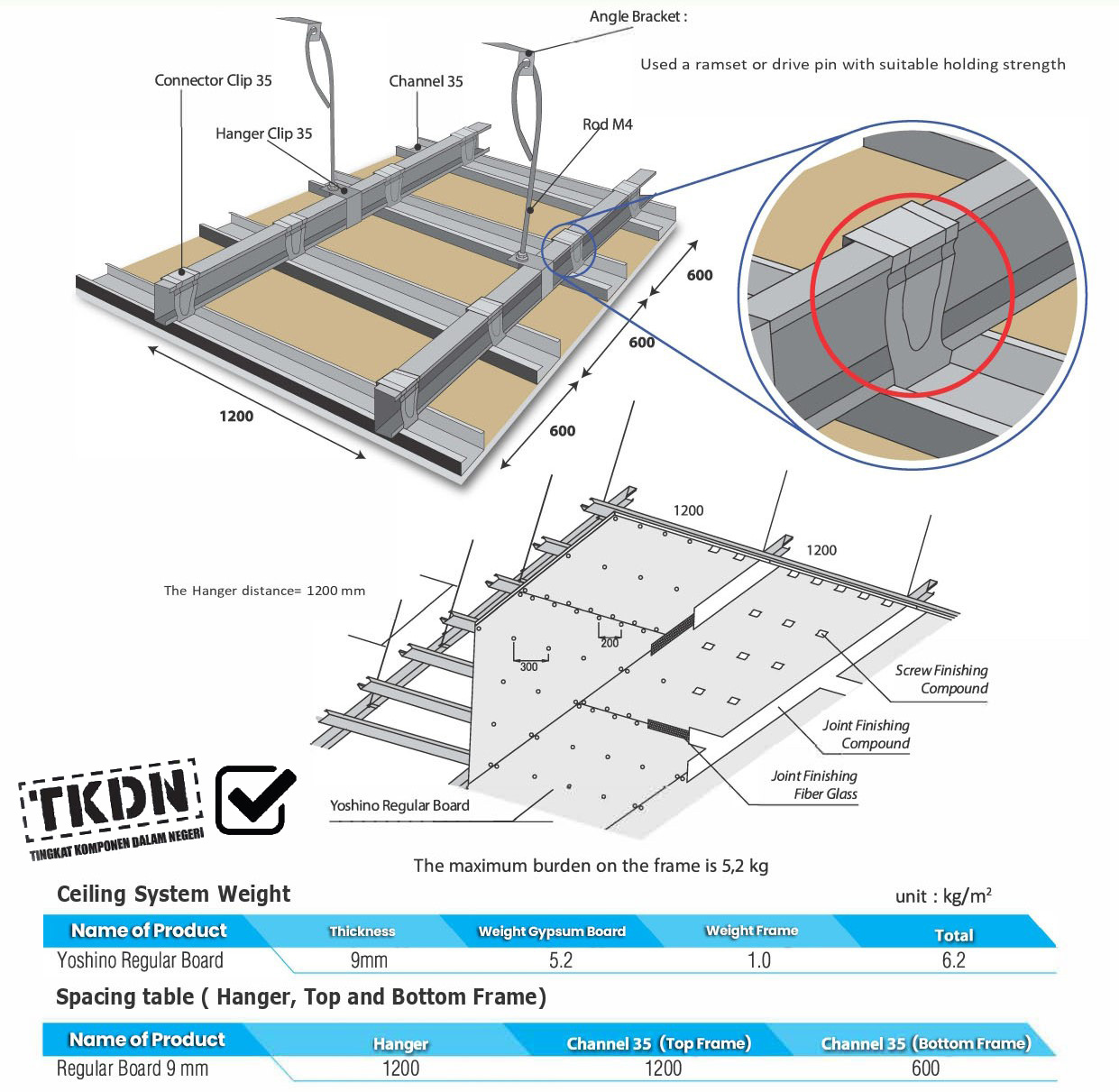

Yoshino Metal System Ceiling 35
Used on ceilings in small rooms with 9 mm gypsum board.

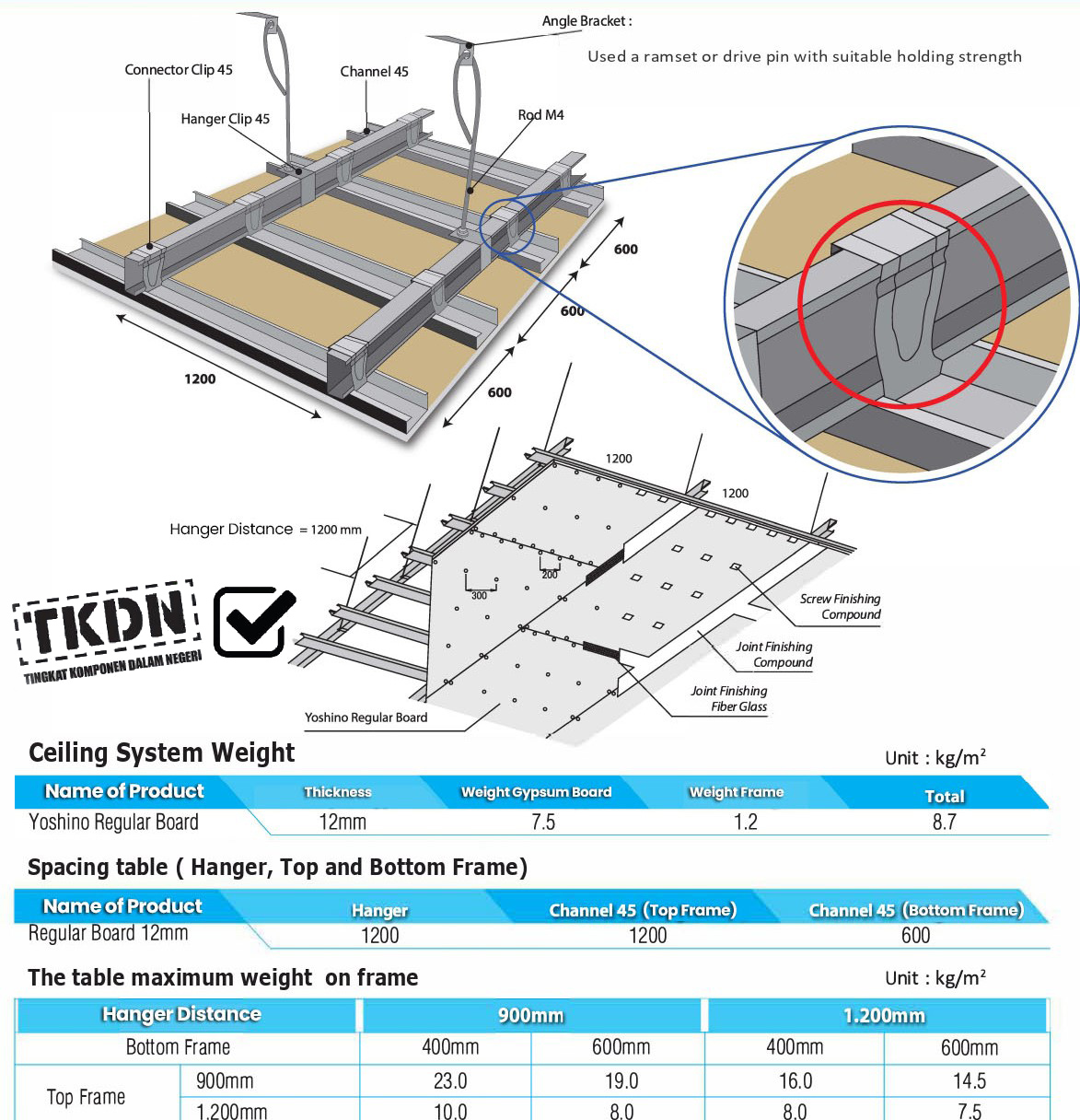

Yoshino Metal System Ceiling 45
Used on ceilings of large-span areas (>100 m²) with multiple layers for enhanced fire resistance.
Installation of Standard Ceiling System
Sistem Plafon Tahan Api 1 jam
Notes For Installation
- All gypsum board joints must be staggered
- Berdasarkan ASTM 840 – 11
- It is recommended to use control joint every 10 meters
- The system performance value will be according to specifications if the components used in the system only used YOSHINO METAL SYSTEM components and are installed according to the specifications provided by PT. YOSHINO INDONESIA.
- Pay attention to the installation of the connector clip. The part where the indentation remain should be installed on the open part (as in the picture)
